Surveying
Highlights

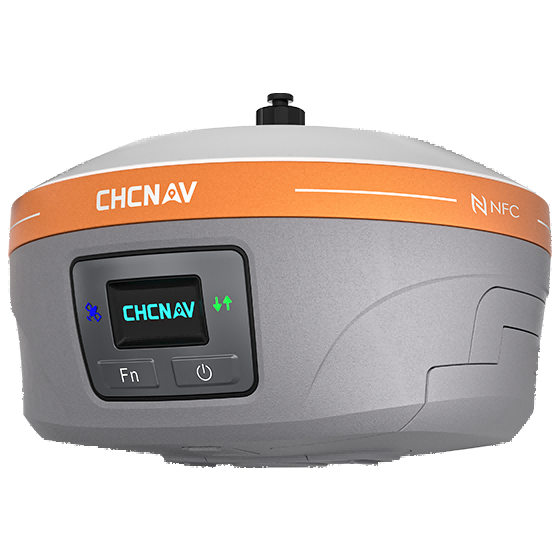

The iBase GNSS receiver offers a streamlined solution as a GNSS base station designed to meet surveyor’s needs. Its performance rivals that of a standard external UHF radio modem without the bulk of external batteries, cables, radios, and antennas. With a 5-watt radio module, it provides GNSS RTK coverage up to 25 km under optimal conditions. Its real-time UHF interference self-checking capability allows operators to select the best frequency channel, increasing ease of use and efficiency. In addition, iBase's integrated AUTO-IMU enhances its functionality as a GNSS rover.
Main Features
Product Details
Premium GNSS
GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS and PPP for robust signal tracking.
Long-Range
5-watt UHF modem for coverage up to 25 km.
Cable-free
No need for external batteries and cables.
Long Battery Life
Up to 12 hours of continuous operation.
Performances
Product Features and Highlights

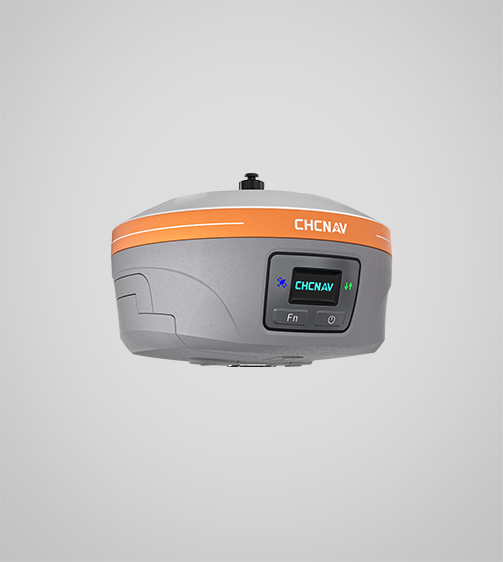

Integrated and Rugged Design
Eliminate the need for external batteries and cables with the iBase’s integrated design. Its industrial-grade build meets IP67 standards for dust and water resistance and has an IK08 shock rating for durability.

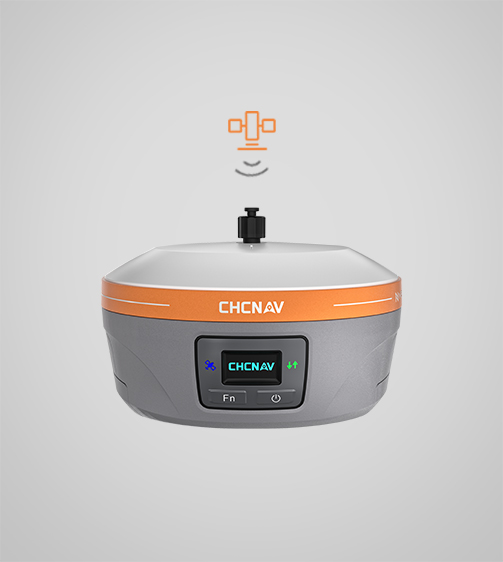

Comprehensive GNSS Tracking
Ensure superior accuracy with the iBase's 1408-channel GNSS technology. It supports GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS constellations and PPP service, providing dependable RTK corrections and improving survey accuracy and efficiency.
Advanced Multipath Mitigation
Improve positioning accuracy with advanced multipath mitigation algorithms. The iBase ensures that high-quality GNSS corrections are transmitted to rovers for optimal performance in challenging environments.

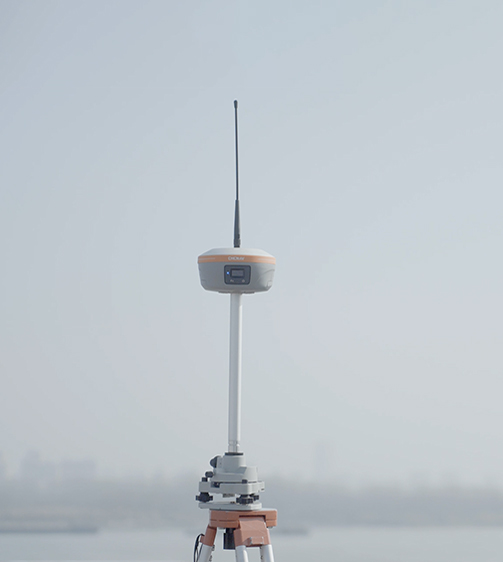

Long-Range UHF Transmission
Achieve wide field coverage with the iBase’s built-in 5-watt UHF radio module. It provides GNSS RTK coverage up to 25 km under optimal conditions, ensuring uninterrupted data transmission over long distances.
Real-Time UHF Interference Checking
Improve efficiency with the iBase’s real-time UHF interference self-checking capability allowing operators to select the most appropriate frequency channel for optimal performance.
Extended Battery Life
Perform extended field operations with the iBase’s dual hot-swappable high-capacity batteries. The advanced electronic design reduces power consumption, ensuring efficient use and extended operating time.
Use Cases
Applications of the iBASE
On-site GNSS Station
Real-time data collection for geospatial surveying and mapping directly on-site.
Cadastral Survey
Precise boundary measurement for land ownership, property division, and legal documentation.
Construction Survey
Surveying for accurate building layouts, ensuring the precision and integrity of construction projects.
Specifications
Product Details
-
Positioning
GNSS: Full GNSS
Precision max.: 0.8 cm H / 1.5 cm V -
Connectivity
Wireless: Bluetooth, Wi-Fi, NFC
Cellular: 4G LTE
Modem: 410-470 MHz, Rx/Tx -
Physical
Weight: 1.73 kg
Dimensions: 160.5 x 103 mm
Battery life: Up to 12 hours RTK base
